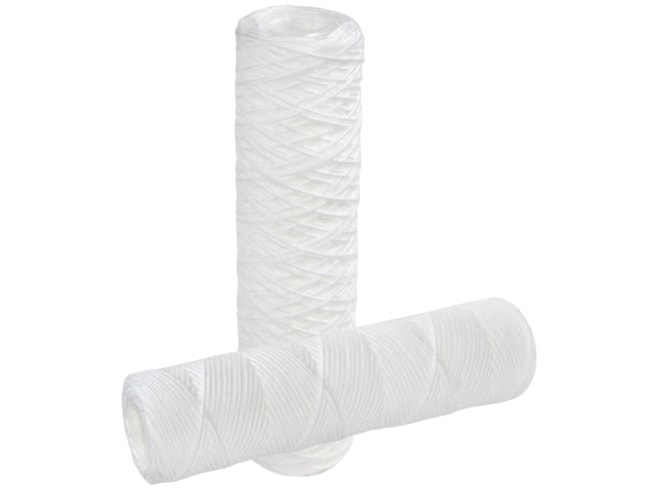

AJR Filtration HC-61 Series String Wound Cartridge Filter

Micron ratings from 0.5 to 200.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at (314) 912-9756. We’re open 7:00 am to 5:00 pm CT.
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...
  • By AJR Filtration
  • Usually ships in 4 weeks. Call for expedite options.

Features

  • Efficiency:
    • 90% nominal
    • 80% below 3µm
  • 60 PSID max. differential pressure
  • 30 PSID max. recommended change-out DP
  • Continuous lengths up to 72in
  • NSF/ANSI 61 certified to meet municipality purchasing specifications
  • Variety of seizes and configurations to ensure proper sizing, fit, and sealing
  • High sediment holding capacity for longer time between filter changes

The AJR Filtration HC-61 Series String Wound Cartridge Filter is certified to comply with the materials safety requirements of NSF/ANSI 61 "Drinking water system components - Health effects." The HC-61 is manufactured to be used by water municipalities and in various point-of-entry (POE) potable water systems.

The filter is made using polypropylene complying with FDA CFR 177.1520. HC "high capacity" filters are designed to provide excellent filtration for fluids with a wide particle size distribution. The HC series filters are wound with two zones in order to provide longer filter life with challenging fluids. A more open pre-filtration section services to protect the downstream media and remove larger particles, while a tighter final filter section provides for removal of smaller particles.

The rating of each zone is specified in order to provide a filter uniquely tailored to process requirements. Precision winding geometry provides consistent removal efficiency. Polyester or polypropylene core covers allow added containment removal assurance. Cartridges are available in continuous lengths from 3 to 72in and diameters from 2 to 4.5in. End fitting options allow installation into most filter housings.

This product can be used in the following applications:
