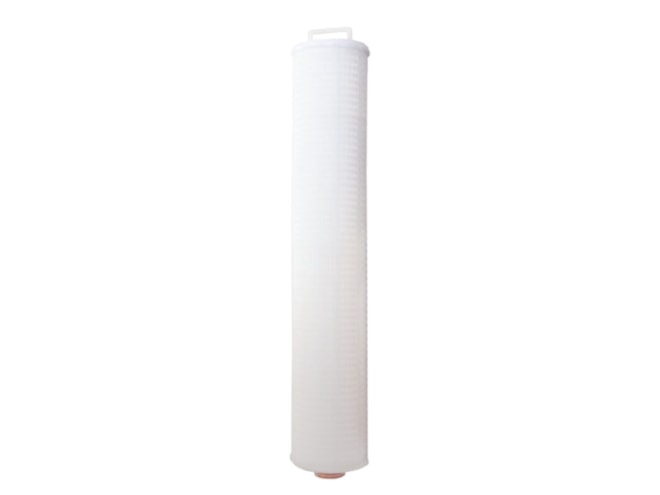

Strainrite MAXX-Pro Pleated Filter

Outside-in polypropylene microfiber with 226 O-rings.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at (314) 912-9756. We’re open Mo-Fri 7am to 5:00pm CT.
Request pricing below.
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...

Features

  • 1, 2, 5, 10, 15, 25, 40, and 70 microns
  • 180°F maximum operating temperature
  • 40in- 60-80 gpm maximum flow rate
  • 35 psid recommended change-out
  • 6.5in nominal top outside
  • Thermally bonded construction
  • Minimum order: 20 (please call for quantities not listed)

The Strainrite MAXX-Pro Pleated Filter are high efficiency, outside to inside flow direction liquid filtration cartridges designed for applications with high contaminant removal requirements.

MAXX-Pro cartridges are for use in filter housings that accept 6.5in (165 mm) outside diameter filter cartridges with 226 O-ring connections. The large diameter, ultra-high surface area pleated cartridges are designed to provide the optimum combination of particle removal efficiency and contaminant holding capability with comparatively low flow resistance. Microfiber forms the basis of the filtration media utilized in MAXX-Pro filter cartridges.

Minimum order: 20 (please call for quantities not listed)
