Overview

Features

  • 35 psid recommended change out
  • 176°F maximum temperature
  • 60 psid at 68°F maximum differential pressure
  • 20, 39, 40, and 60in lengths
  • 6.25in outside diameter
  • Polypropylene or microglass construction
  • Inside to outside flow
  • Buna, EPDM, silicone, and viton o-rings
  • HF= Pall
  • HF3= 3M 740

Description

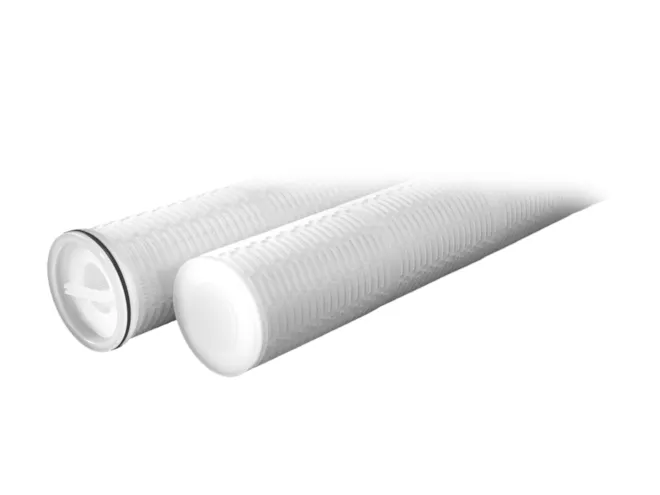

The Global Filter HF/HF3-Series High Flow Pleated Filter Cartridge addresses your need for absolute rated filter cartridges in high flowrate and/or high solids-load applications. Thermally-bonded construction utilizing polypropylene hardware for high cleanliness and broad chemical compatibility.

Inside to outside flow direction and single o-ring seal ensures against by-pass and captures all contaminants internally, thus preventing clean-side contamination during change-out. Robust molded outer cage and handle offers durability and easy installation/removal.

HF3-Series cartridges are designed for use as a direct replacement to the Pall Ultipleat High Flow series.

Absolute ratings exceed 99% efficiencies, nominal ratings exceed 90%.
