Overview

Features

  • 10 to 40in lengths
  • 2.7in outer diameter
  • 0.04 to 0.8 micron ratings
  • 35 PSID change out ΔP
  • 176˚F max temperature
  • 50 PSID at 68˚F differential pressure
  • Sterilization/sanitization methods:
    • Filtered hot water 176˚F for 30 min
    • Steam sterilization 250˚F for 30 min
  • Compatible with most chemical sanitizing agents
  • Polyethersulfone and polypropylene construction
  • O-Rings/Gaskets: Buna, EPDM, silicone Teflon encapsulated Viton, Viton, Teflon encapsulated silicone

Description

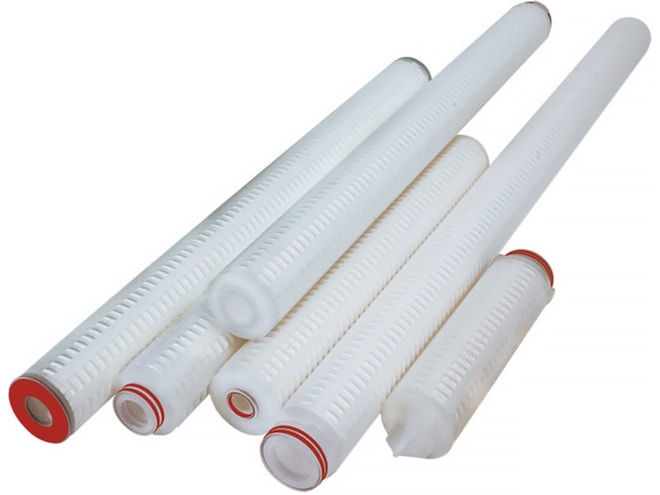

The Global Filter WCPES Series WaterClear Polyethersulfone Filter Cartridge has a naturally hydrophilic membrane that wets easily to allow maximum surface area utilization. The highly retentive PES membrane offers excellent flux density and low protein binding. These filters can be configured with lengths up to 40in and between 0.04 to 0.8 micron filtration grades.

The WCPES series is designed to withstand repeated hot water sanitization and in-situ steam sterilization cycles. (The stainless steel insert option is required for sanitization with hot water or steam.) They are also manufactured in a cleanroom environment to maintain high standards of purity and cleanliness. Materials used to construct the WCPES series meet FDA and EU Directives for food-safe contact.

Applications

  • Liquid Clarification
  • Chemical Filtration
  • Deionized Water Systems
  • General-Use Water Filtration
