Overview

Features

  • Filter media: Borosilicate microglass with acrylic binder
  • Support media: spun-bonded Polyester
  • 5-40in lengths
  • 0.2-40 microns
  • 176°F maximum temperature
  • 60 PSID at 68˚F differential pressure
  • 35 PSID change out ∆P (recommended)
  • Sanitization and sterilization methods:
    • Filtered hot water at 176˚F for 30min
    • Steam sterilization at 250˚F for 30min
  • O-Ring and gasket materials: Buna, EPDM, Silicone, Teflon encapsulated Viton, Viton, Teflon encapsulated silicone
  • Broad use with process water, lubricants, and fine chemicals

Description

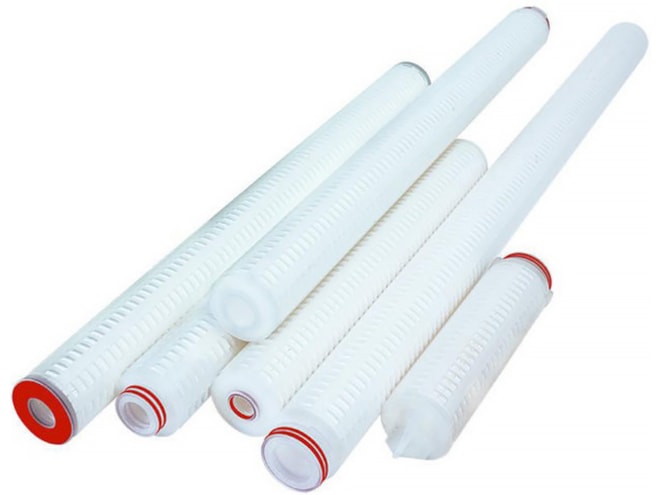

The Global Filter FG Series Pleated Microglass Filter Cartridge offers high-efficiency retention of particulate matter from liquid and gaseous fluid streams. This series features superior retention efficiency, low-pressure drop, and greater contaminant loading capacity relative to alternative media. It is suitable for food and potable water contact and delivers to the high-performance demands in food production and bottled water manufacturing.

The FG series is manufactured in a clean-room environment to maintain high standards of purity and cleanliness. It is offered in absolute-rated (up to 99.98% retention) and nominally rated (90% retention) grades with common adapter configurations.

Applications

  • Food and Beverage
  • Deionized water
  • Process water
  • Fine chemicals
  • Sweeteners
  • Wastewater
  • Produced water
  • Wine clarification
