Overview

Features

  • Polypropylene or Microglass filter media
  • 12 or 24in length
  • Outside diameter:
    • Flange: 7.06in
    • Cartridge: 6in
  • 160°F maximum temperature
  • 35 PSID at 68˚F differential pressure
  • Buna, EPDM, Silicone, and Viton o-ring/gasket options

Description

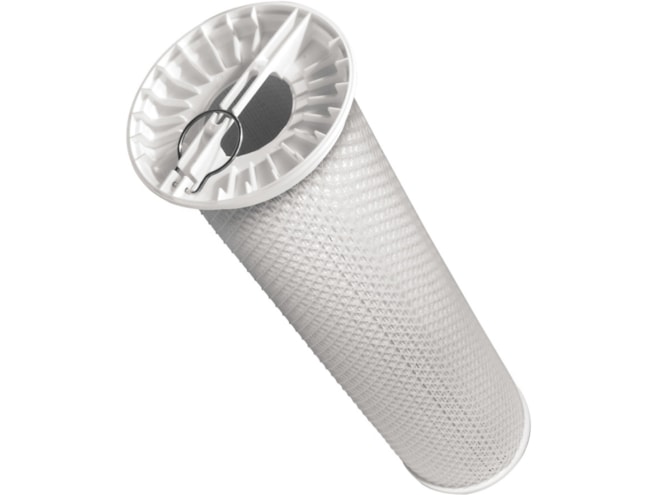

The Global Filter HFB Series Pleated High Flow Cartridge is designed to seal into most standard bag filter vessels. These cartridges deliver high efficiencies, flow rates, and loading capacities in applications with extremely low initial pressure drops. With the inside-to-outside flow design, all contaminants are captured inside the element, preventing potential contamination of filtered products during the change-out process.

The HFB series is available in both absolute-rated and nominally-rated grades. Absolute-rated units offer up to 99.98% retention, while nominally-rated units offer up to 90% retention. These cartridges utilize polypropylene or microglass filter media and polypropylene hardware, offering broad chemical compatibility.

The HFB series uses food-safe materials that comply with FDA and EU regulations for food and beverage contact. All polypropylene components also meet the specifications for biological safety per USP Class VI - 121˚C for plastics.

Applications

  • Process Water
  • Deionized Water
  • Food & Beverage
  • Fine Chemicals
  • Produced Water
  • Waste Water
  • Amines
  • Cosmetics
  • R.O. Membrane pre-filtration
