Solberg ST/CT Series Inline Vacuum Pump Filter

Inline vacuum filters with a 99+% removal efficiency and designed for space restrictions.

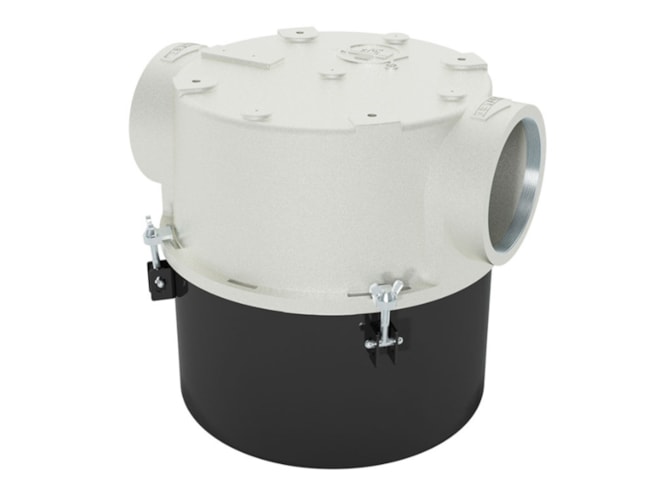

Solberg ST/CT Series Inline Vacuum Pump Filter (CT Series)
Solberg ST/CT Series Inline Vacuum Pump Filter (ST Series)

Highlights...

By Solberg
Call for Availability

Features

Vacuum rating: medium vacuum service
Temperature range: 15 to 220°F (-26 to 104°C)
Filter change out differential: 15-20 inH2O over initial ΔP
99+% removal efficiency standard to 2 micron (paper) or 5 micron (polyester)
Bucket design
- ST series provides a see through bucket
- CT series uses a black powder coat carbon steel bucket
Corrosive resistant cast aluminum top

The Solberg ST/CT series is a series of inline vacuum pump filters with the option for users to choose between see through buckets (ST) or carbon steel buckets (CT). The vacuum filter contain a corrosive resistant cast aluminum top with machines connections and integrated baffle design. The T-style design of the filters minimizes piping requirements. There is an inlet above the element that allows for an extended element life and maintenance intervals. The element SCFM ratings range from 80 to 1100 SCFM (CT) or 80 to 570 SCFM (ST).
