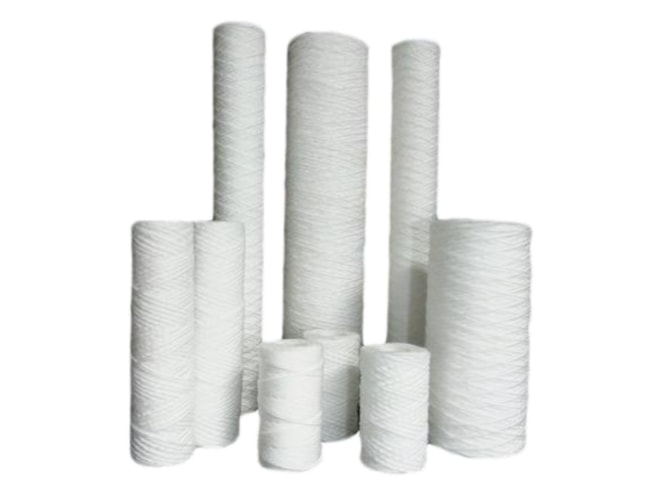

Coleman Filter Fiberglass String Wound Depth Filter

Name: Coleman Filter Fiberglass String Wound Depth Filter
Price: 274.37 USD
Availability: BackOrder

750°F maximum media temperature.

Select your options below…

"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.

Need help? Call one of our experts at (314) 912-9756. We’re open Mo-Fri 7am to 5:00pm CT.

Request pricing below.

${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)

Configured Part Number: {{ calcPartNumber }}

Alternate Part Numbers: {{pn}}
{{pn}}

Request Quick Quote

Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo

Highlights...

By Coleman Filter Company
Usually ships in 4 weeks. Call for expedite options.

Features

4 to 6 GPM flow rate per 2.5in x 10in length (depending on fluid)
90% nominal efficiency
30 PSID recommended max. change-out differential pressure
60 PSID max. differential pressure

The Coleman Filters Fiberglass String Wound Depth Filter is ideal for high temperature and high corrosion applications.

String wound depth filters are created by winding diamonds onto a core with 1 to 4 inches of filtration media. Bleached cotton media filters provide a high dirt holding/retention capability with low media migration. These filters are spun wound to micron ratings from 0.5 to 200 with a temperature rating up to 750°F. Core center material options include polypropylene, tin, 304SS, or 316SS.
