Overview

Features

  • 100 psid (6.9 bar) collapse pressure
  • 250°F maximum service temperature
  • Coated steel end caps

Description

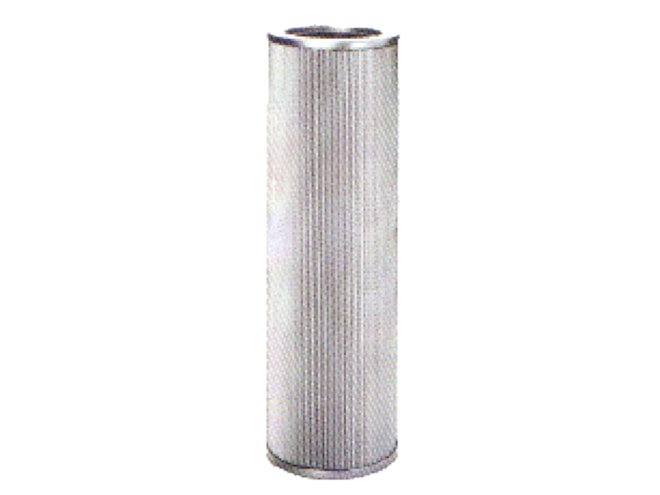

The Hilliard Hilco PH 720/739 CG Filter Cartridges are high flow filter cartridge designed for turbine, turbo compressor, and hydraulic applications. It features a double-screened synthetic media in a rigid pleat construction, providing high dirt holding capacity and fatigue resistance under cyclic flows.

The PH739 effectively filters oils, fuels, and water with high efficiency based on the Beta ratio standard. Its large 6.25” diameter results in reduced housing costs, smaller inventory, and fewer cartridge change-outs compared to conventional filters.

Constructed of epoxy-coated steel with Buna-N seals, the PH739 can withstand temperatures up to 250°F and 100 psi differential pressure. The synthetic media resists degradation from water exposure. PH739 cartridges come in 39.5” length and provide flow rates up to 500 gpm per 10 psi with low clean pressure drop.

In Stock

Part Number Price Available
PH720-01-CG
Call for pricing 2 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 4 weeks. Call for expedite options.". Click here to select options
