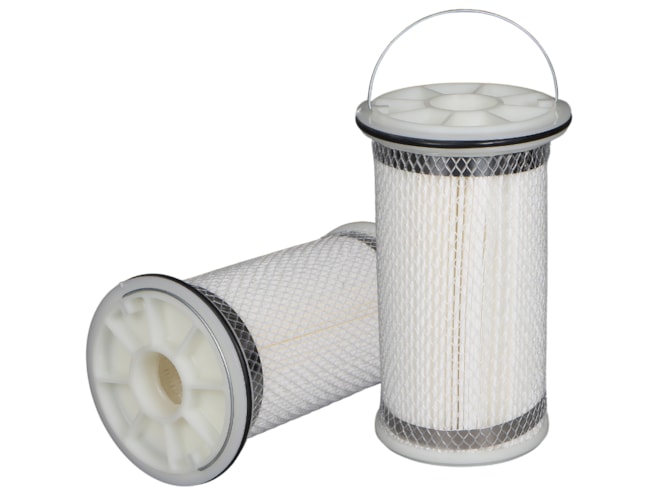

AJR Filtration 600 Series Deep Pleated Liquid Cartridge Filter

Micron ratings from 1 to 40.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at (314) 912-9756. We’re open Mo-Fri 7am to 5:00pm CT.
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...
  • By AJR Filtration
  • Usually ships in 4 weeks. Call for expedite options.

Features

  • Polyester or polypropylene filter media
  • Max. operating temperature:
    • Polyester: 275°F
    • Polypropylene: 200°F
  • Fits most Size #1 or #2 strainer baskets
  • Filter media meets FDA regulations for food contact under CFR21, Section 177.1520
  • Optimal application conditions for economical performance:
    • 30 GPM at max. 25 PSID (Sizes #1 and #2)
  • Broad chemical capability
  • Silicone-free construction
  • Handles on all filters (galvanized)

The AJR Filtration 600 Series Deep Pleated Liquid Cartridge Filter provides 99% absolute efficiencies from 1 to 40 microns. Multiple layers of filtration media together with a deep pleat design deliver maximum dirt holding capacity and filtration efficiency. A single deep pleated cartridge can replace up to 20 standard filter bags.

The cartridge filter is constructed with thermally bonded end caps with a choice of polypropylene or polyester filter media for broad chemical compatibility. The deep pleat design is secured with stainless steel bands and polyethylene netting. These filters are designed to fit into most existing Size 1 and 2 baskets and provide an O-ring side seal without housing modifications.
