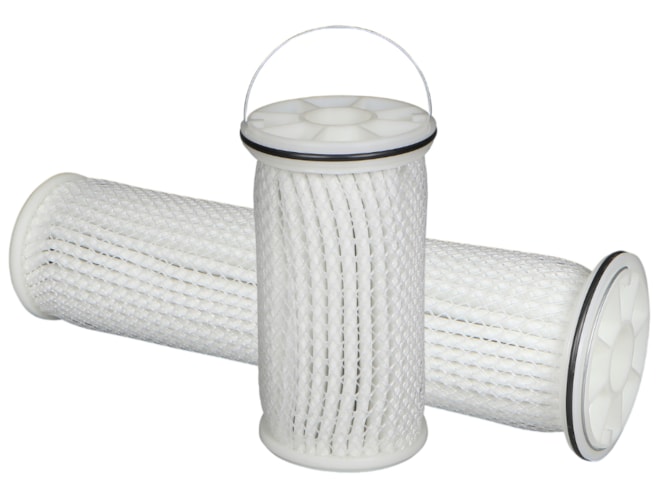

AJR Filtration NDC Nominal Depth Pleated Liquid Cartridge Filter

Micron ratings from 1 to 200 (inner layer) and 5 to 200 (outer layer).

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at (314) 912-9756. We’re open Mo-Fri 7am to 5:00pm CT.
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...
  • By AJR Filtration
  • Usually ships in 4 weeks. Call for expedite options.

Features

  • Max. operating temperature:
    • Polyester: 275°F
    • Polypropylene: 200°F
  • Silicone-free construction
  • Handles on all filters (galvanized)
  • Fits most #1 or #12 strainer baskets
  • Polypropylene and polyester materials meet FDA regulations for food contact under CFR21, Section 177.1520
  • Broad chemical compatibility

The AJR Filtration NDC Nominal Depth Pleated Liquid Cartridge Filter maximizes dirt holding capacity and efficiency by pleating two layers of nominal felt to create a pre-filter and final layer, providing 5 to 10 times the surface area (depending on the micron rating).

The two-layer pleat pack is designed for higher flow applications with a lower initial pressure drop. Thermally bonded end caps prevent particulate by pass. The cartridge filter is available in polyester or polypropylene construction.
