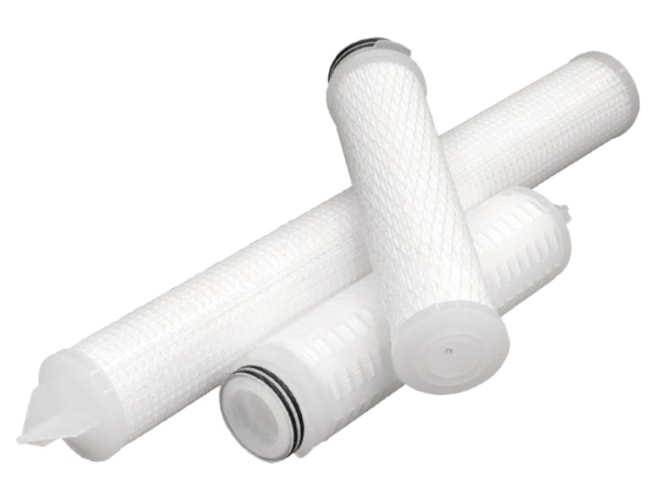

AJR Filtration PPOW 2.75in Pleated Liquid Cartridge Filter
Micron ratings from 0.2 to 25.
Overview
Features
- Standard 2.75in diameter, over 6.75 sq. ft. per 10in length of media
- 176°F max. operating temperature
- 99.98% absolute efficiency in all micron ratings
- 10 to 40in continuous length pleats
- Numerous end cap configurations available
- Interchangeable with all popular sizes
- FDA-certified polypropylene filter media, support layers & hard cage
Description
The AJR Filtration PPOW 2.75in Pleated Liquid Cartridge Filter includes ultrasonically bonded side seams, and the entire assembly is thermally fused without adhesives for ultimate strength and durability. Filters are individually poly-bagged to maintain cleanliness. A variety of gasket & O-ring materials are available, for broad fluid compatibility. Recommended change-out is 30 PSID.
Applications
- Chemical
- Electronics
- Pharmaceuticals
- Food & beverage
- Coatings & oil
- Gas processing
