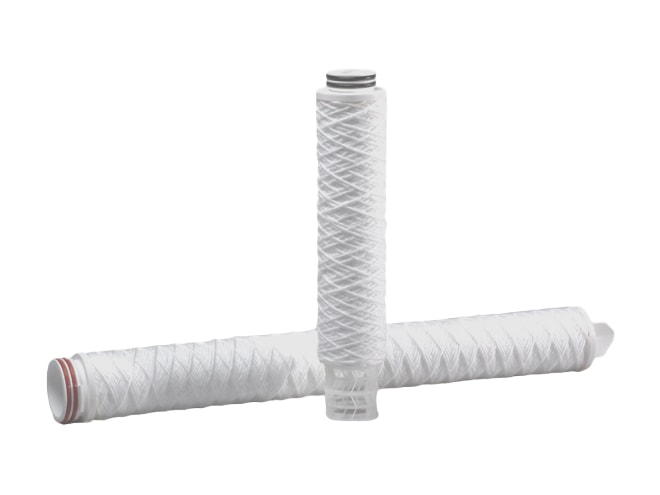

AJR Filtration EEF Series String Wound Cartridge Filter

Micron ratings from 0.2 to 5.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at (314) 912-9756. We’re open Mo-Fri 7am to 5:00pm CT.
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} per {{ boxQuantity }}
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...
  • By AJR Filtration
  • Usually ships in 4 weeks. Call for expedite options.

Features

  • Efficiency:
    • 0.2µm: 99% efficient for 0.5 micron particles
    • 0.5µm: 95% efficient for 0.5 micron particles
  • High sediment holding capacity for longer time between filter changes
  • Efficient removal of particles <1µm
  • Continuous lengths up to 72in
  • Wide range of materials to ensure process compatibility
  • Variety of sizes and configurations to ensure proper sizing, fit, and sealing

The AJR Filtration EEF Series String Wound Cartridge Filter employs a 3-ply SMS polypropylene, nonwoven final filter layer downstream of a wound pre-filter section.

The EEF filters a higher percentage of fine particulate compared to traditional string wound filters, up to 99% of 0.5 micron particles. The filter is ideal for users with challenging fluids who need to remove particulates at or below 1 micron diameter, and nominal ratings of 0.2, 0.5, 1 and 2 microns are available.

The EEF series of depth filters offer a choice of pre-filtration media and support cores. End fitting options allow the retrofitting of most filter housings. Precision winding geometry provides consistent and controlled pre-filtration to the downstream nonwoven final layer in order to achieve a high dirt holding capacity. Cartridges are available in continuous lengths from 3 to 72in and diameters from 2 to 4.5in.

Applications

  • Process water
  • Catalyst fines removal
  • Inks, paints, coatings
  • Carbon fines
  • Pre-filtration for membrane/reverse osmosis (RO) systems
  • Food and beverage
  • Chemicals, acids, bases
  • Solvents, organics
