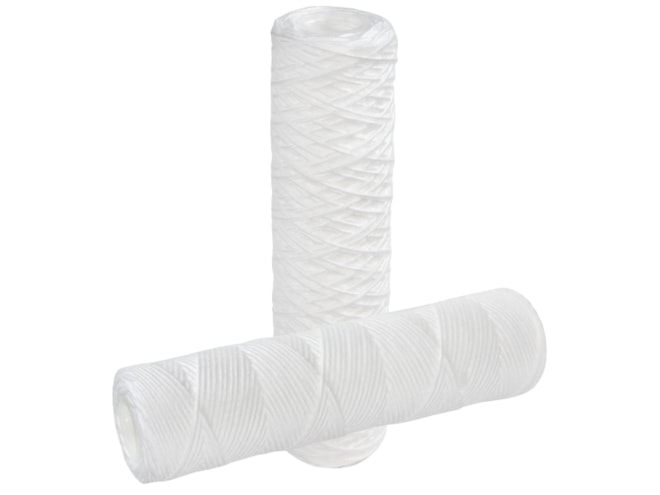

AJR Filtration HC Series String Wound Cartridge Filter

Name: AJR Filtration HC Series String Wound Cartridge Filter
Price: 110.31 USD
Availability: BackOrder

0.5 to 200 micron rating downstream/upstream.

Select your options below…

"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.

Need help? Call one of our experts at (314) 912-9756. We’re open 7:00 am to 5:00 pm CT.

Request pricing below.

${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)

Configured Part Number: {{ calcPartNumber }}

Alternate Part Numbers: {{pn}}
{{pn}}

Request Quick Quote

Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo

Highlights...

By AJR Filtration
Usually ships in 4 weeks. Call for expedite options.

Features

Wide range of materials to ensure process compatibility
Variety of sizes and configurations to ensure proper sizing, fit, and sealing
Dual-zone construction providing a longer life
High sediment holding capacity for longer time between filter changes
Continuous lengths up to 72in

The AJR Filtration HC Series String Wound Cartridge Filter is a "high capacity" series cartridge, providing filtration for fluids with a wide particle size distribution.

HC series filters are wound with two zones in order to provide longer filter life with challenging fluids. A more open pre-filtration section serves to protect the downstream section and remove larger particles, while a tighter final filter section provides removal of smaller particulates.

The rating of each zone is specified in order to provide a filter uniquely tailored to process requirements. AJR offers these depth filters with a choice of filtration medias, support cores, and materials to ensure process compatibility. Precision winding geometry provides consistent removal efficiency. Ratings are available from 0.5 to 200µm. Optional core covers allow added contaminant removal assurance. Cartridges are available in continuous lengths from 3 to 72in and diameters from 2 to 4.5in. End fitting options allow installation into most filter housings.
