  • By AJR Filtration
  • Usually ships in 4 weeks. Call for expedite options.

Overview

Features

  • High flow/low pressure drop media
  • All-welded design with polypropylene top flange and bottom cap
  • 200˚F max. operating temperature
  • Silicone-free construction
  • Wide chemical compatibility
  • NMO media meets FDA regulations for food contact per CFR21, Section 177.1520

Description

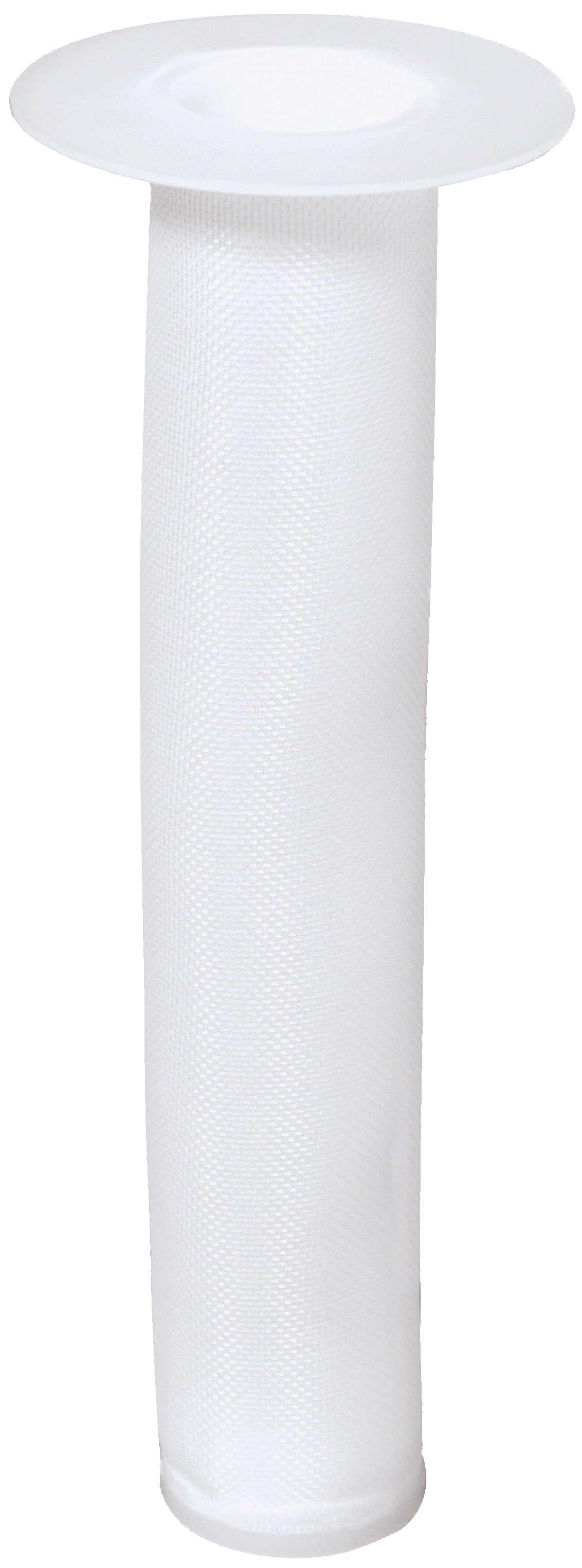

The AJR Filtration SBF and FMC Welded Bag Filter is constructed from nylon monofilament mesh (NMO) available in a wide range of absolute micron ratings. NMO mesh filter media is woven from single-fiber threads, with precise square openings to ensure consistent pore size. AJR SBF and FMC bags have a unique double layer design for stiffness and durability.

SBF bag filters are designed for use in compact bag vessels, and includes a Buna O-ring as standard. FMC filter bags are designed for use in drum filling lines. PTFE and Viton O-rings are optional for both models.

Applications

This product can be used in the following applications:
