Overview

Features

  • 250 PSIG pressure rating
  • 15 to 1,600 SCFM capacity
  • 1/4 to 3" NPT
  • 25 to 0.01 micron filter grades available
  • Flows up to 2,300 MSCFD at 100 PSIG
  • Push-on element for quick servicing
  • Option to include replacement element

Description

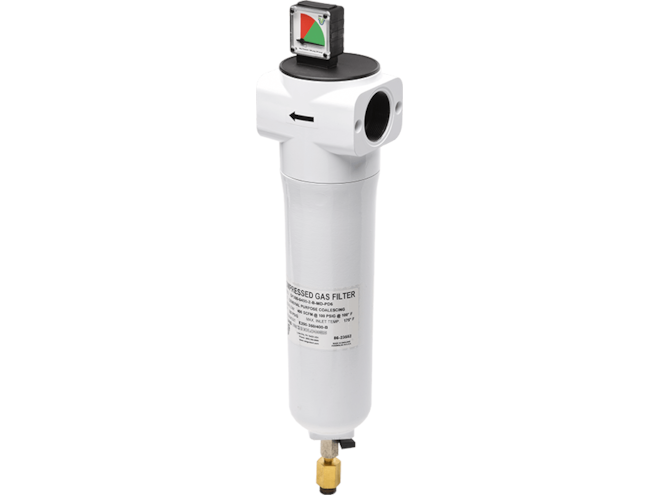

The Van Air Systems GF200 Series Natural Gas Filter removes contaminants from natural gas systems, and are constructed of cast aluminum and coated with an epoxy powder coating for corrosion resistance. All units include push-on elements with a durable polyester drain layer. A green-to-red indicator gauge signals when the element needs replacing. Multiple coalescing filter grades are available for each model, from 25 down to 0.01 micron.

Applications Include:

  • Desiccant bed protection
  • Compressed natural gas
  • Regulator stations
  • Instrument gas
  • Gas distribution
  • Sea gas
