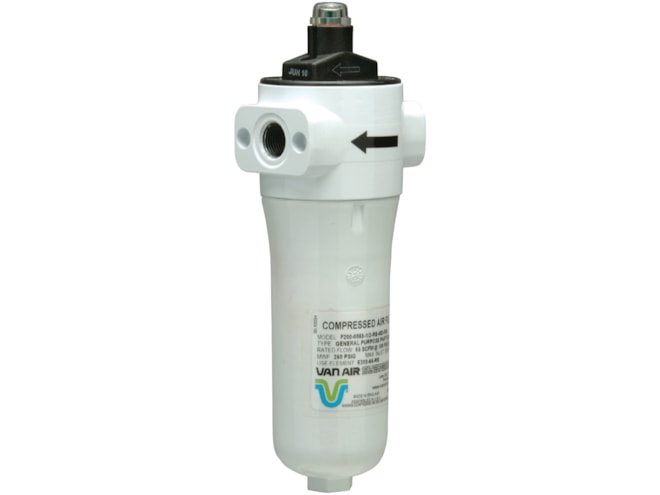

Van Air Systems F200 Series Compressed Air and Gas Filter

Heavy duty filter for removal of oil aerosols, oil vapors, liquids, and sub-micron particles.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at (314) 912-9756. We’re open Mo-Fri 7am to 5:00pm CT.
Starting Price: $475.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} per {{ boxQuantity }}
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...

Features

  • 250 PSIG max working pressure
  • 15 to 1600 SCFM capacity
  • 1/4" to 3" NPT connection
  • 25 to 0.01 micron filter grades available
  • Differential pressure indicator included
  • Manual and automatic drain options
  • Manual drain option is approved for natural gas service

Van Air Systems F200 Series Compressed Air Filters eliminate compressor lubricant, oil aerosols, dust, dirt, and scale from compressed air systems. These filters are available with flow rates up to 1600 SCFM with nine different element grade options. Each F200 filter includes a durable cast aluminum housing and a filter element constructed with stainless steel support cores and high-performance filter media.

Applications Include:

  • Pneumatic hand tools
  • Instrument air & gas
  • Abrasive blasting
  • Dust collectors
  • Blow molding
  • Air cylinders, motors
  • Pre-filter for deliquescent, regenerative and refrigerated dryers
