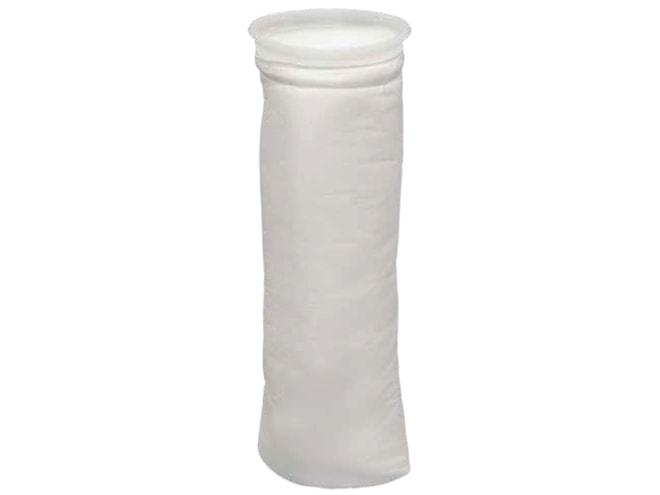

AJR Filtration 500 Series High Performance Bag Filter

Name: AJR Filtration 500 Series High Performance Bag Filter
Price: 60.42 USD
Availability: BackOrder

Micron ratings from 0.5 to 32; absolute efficiencies to 99.0%.

Select your options below…

"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.

Need help? Call one of our experts at (314) 912-9756. We’re open Mo-Fri 7am to 5:00pm CT.

Request pricing below.

${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)

Configured Part Number: {{ calcPartNumber }}

Alternate Part Numbers: {{pn}}
{{pn}}

Request Quick Quote

Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo

Highlights...

By AJR Filtration
Usually ships in 4 weeks. Call for expedite options.

Features

Polypropylene media type
Polyester media available- please call for quote
Stainless steel ring standard
Wide chemical compatibility
Handles standard on all ring style bags
Multilayer construction

The AJR Filtration 500 Series High Performance Bag Filter uses polypropylene and polyester microfiber materials to provide high efficiencies at low micron ratings. The multilayer technology results in a true graded density material with high performance levels.

The 500 Series bag filter contains 40 to 56 sq. ft. of usable filter media (depending on micron rating). This compares with only 4.4 sq. ft. for most bag filters. The 500 Series can also absorb unwanted trace oils that frequently occur in processed fluids. The high amount of surface area due to the microfiber construction results in oil-holding capacities of 15 to 25 times the filter's own weight.

The 500 Series bag filter complies with FDA regulations governing food and beverage contact. The 500 Series is available in the standard size #2. The filters are made from pure polypropylene or polyester and are free of potentially damaging silicone oils.

Polyester available- please call for quote!

AJR-P Flange and AJR-F Flange available- please call for quote!
