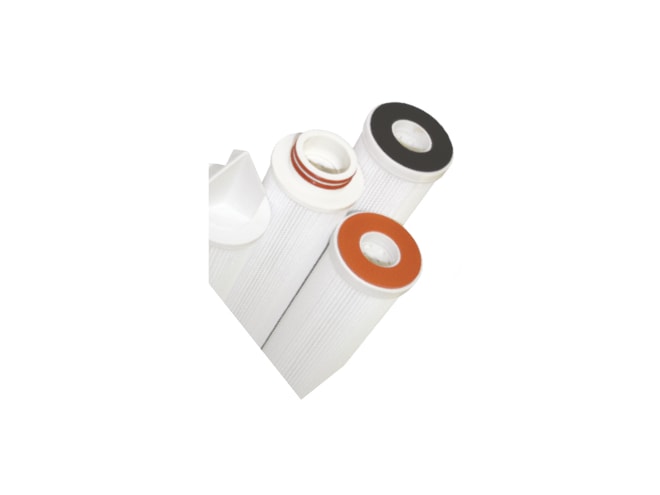

Graver Technologies GFP Series Pleated Filter Cartridge

Micron ratings from 0.2 to 30 μm.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at (314) 912-9756. We’re open Mo-Fri 8:30am to 5:00pm EST.
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...

Features

  • 5-40in lengths
  • 230°F maximum operating temperature
  • Maximum differential pressure:
    • 75 psid @ 70°F
    • 60 psid @ 200°F
    • 50 psid @ 230°F
  • Maximum reverse pressure:
    • 40 psid @ 70°F
  • Various gasket/o-ring materials

The Graver Technologies GFP Series Pleated Filter Cartridge is constructed of pleated Borosilicate Microfiberglass media that combines efficient flow rates with service life. The polyester supports of the GFP filter cartridge provide enhanced thermal tolerance for applications for higher temperature applications. The nominally-rated borosilicate microfiber depth matrix has a natural positive charge that aids in the retention of negatively charged particulates and combined with the depth characteristics of glass media, works well in the removal of both deformable and non-deformable particles. The GFP filter cartridge is an economical solution for both liquids and gases in a wide variety of filtration applications.
