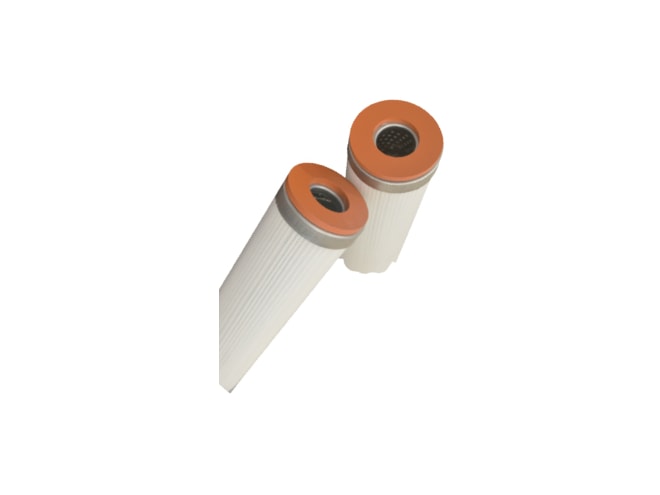

Graver Technologies GSS Series Pleated Filter Cartridge

304 stainless steel center core and end caps.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at (314) 912-9756. We’re open Mo-Fri 8:30am to 5:00pm EST.
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...

Features

  • 0.2, 0.45, 1, 10, 30 µm
  • 9.75-40in lengths
  • 250°F maximum operating temperature
  • 75 psid @ 250°F maximum differential pressure
  • 30 psid @ 70°F maximum reverse pressure

The Graver Technologies GSS Series Pleated Filter Cartridge is constructed of pleated Borosilicate Microfiberglass media to combine  flow rates with service life. The 304 stainless steel core and end caps of the GSS filter cartridge provide thermal tolerance for higher temperature applications. The 90% nominally-rated borosilicate microfiber depth matrix has a natural positive charge that aids in the retention of negatively charged particles, and combined with the depth characteristics of glass media, works well in the removal of both deformable and non-deformable particles. The GSS filter cartridge is an economical solution for both liquids and gases in a wide variety of filtration applications.
