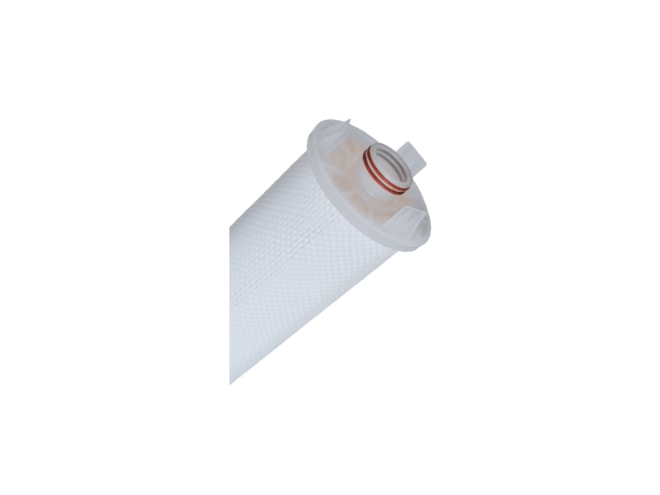

Graver Technologies High Flow RF Pleated Filter Cartridge

Absolute retention ratings from 1 to 100 microns.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at (314) 912-9756. We’re open Mo-Fri 8:30am to 5:00pm EST.
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...

Features

  • 10, 40, and 60in lengths
  • 176°F maximum operating temperature
  • 25 psid @ 70°F maximum reverse pressure
  • Maximum differential pressure:
    • 60 psid @ 70°F
    • 30 psid @ 176°F
  • Maximum flow rates:
    • Up to 80 GPM (302 lpm) for P2
    • Up to 500 GPM (1890 lpm) for P30
  • Multi-layer pleated construction with optimized surface area
  • Polypropylene construction

The Graver Technologies High Flow RF Pleated Filter Cartridge is designed to handle higher volume applications with fewer filter elements, resulting in quicker, easier filter changeouts. In addition, the multi-layer media construction allows for excellent dirt holding capacity, extending the time between filter changeouts.
