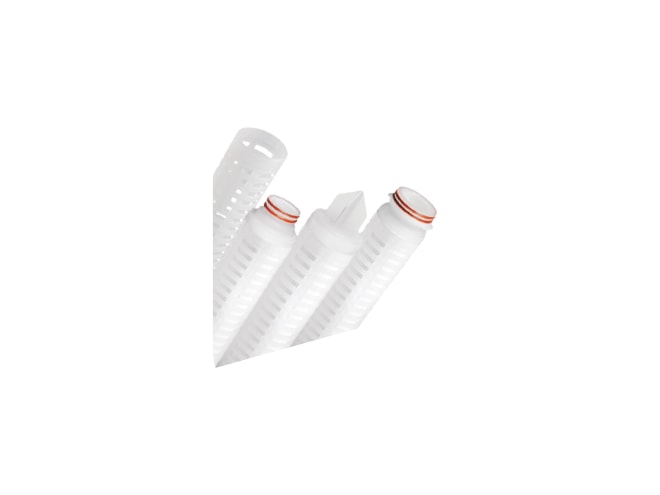

Graver Technologies QMA Series Pleated Filter Cartridge

Absolute efficiency rated at 99.98%.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at (314) 912-9756. We’re open Mo-Fri 8:30am to 5:00pm EST.
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...

Features

  • 0.2-10 microns
  • 5-40in lengths
  • 176°F maximum operating temperature
  • 40 psid @ 70°F maximum reverse pressure
  • Maximum differential pressure:
    • 75 psid @ 70°F
    • 30 psid @ 176°F
  • Polypropylene construction
  • Various gasket/O-ring materials

The Graver Technologies QMA Series Pleated Filter Cartridge is constructed with a high surface area melt blown polypropylene media for low initial pressure drop, high dirt holding capacity, and high efficiency performance.
