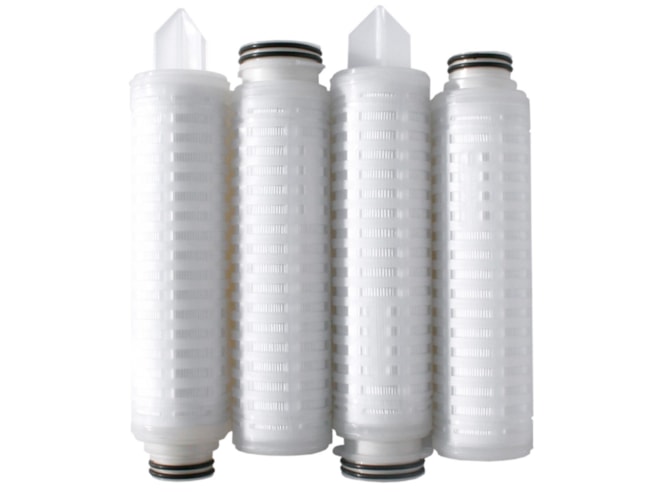

Graver Technologies ZTEC E Series Membrane Filter Cartridge

Designed for ultrapure water filtration, hydrophilic and free of added surfactants, retention from 0.03 to 0.45 micron.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at (314) 912-9756. We’re open Mo-Fri 8:30am to 5:00pm EST.
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...

Features

  • 0.03 to 0.45 micron retention rating
  • Maximum differential pressure:
    • 80 psid at 70°F (5.2 bar at 21°C)
    • 40 psid at 160°F (2.0 bar at 71°C)
  • Maximum reverse differential pressure:
    • 40 psid at 70°F (2.8 bar at 21°C)
  • Maximum sustained operating temperature:
    • 176°F (80°C) at 20 psid (1.38 bar)
  • Manufactured, flushed, tested and packaged, in an ISO Class 7 Cleanroom Environment
  • Tested by outside laboratory for the following:
    • TOC Rinse-up to 0.5 ppb
    • Particle Rinse-up
    • Non-Volatile Residue
    • Resistivity Rinse-up to 18 MΩ-cm
    • Trace Metal Extractables
    • Anion and Cation Extractables

The Graver Technologies ZTEC E Series Membrane Filter Cartridge is designed for ultrapure water filtration, and are hydrophilic and free of added surfactants to avoid contamination of water streams. The PES membrane offers superior flow characteristics, high contaminant capacity and consistent removal of submicron particles. The cartridges feature rapid rinse-up to 18 MΩ-cm resistivity and single digit ppb levels of TOC.

Applications:

  • DI Water
  • High purity chemicals
