Overview

Features

  • 0.2 to 0.65 micron retention rating
  • Maximum differential pressure:
    • 80 psid at 70°F (5.2 bar at 21°C)
    • 40 psid at 160°F (2.0 bar at 71°C)
  • Maximum reverse differential pressure:
    • 40 psid at 70°F (2.8 bar at 21°C)
  • Maximum sustained operating temperature:
    • 176°F (80°C) at 20 psid (1.38 bar)
  • Manufactured in an ISO Class 7 Cleanroom Environment
  • 100% flushed with ultrapure DI water and integrity tested
  • High retentions up to 107/cm2 challenged for bacteria and yeast
  • Certifications:
    • USP Class VI: Meets USP Class VI Biological Test for Plastics
    • FDA Listed Materials: All materials comply with FDA Title 21 of the Code of Federal Regulations Sections 174.5, 177.1520 (polypropylene), and 177.2440 (PES Resin)
    • European Directive for Food Contact: European Regulation No. 1935/2004 and European Regulation 10/2011

Description

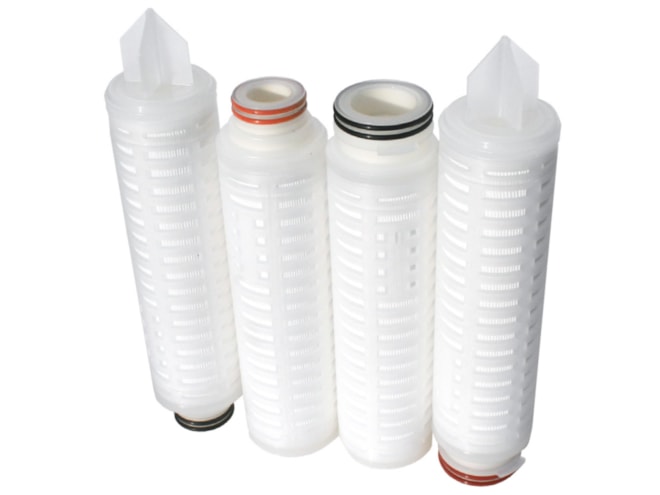

The Graver Technologies ZTEC B Series Membrane Filter Cartridge is a Bioburden Reduction grade membrane cartridge that provides highly consistent performance and particle removal across a wide range of beverage, pharmaceutical and biological fluids. The naturally hydrophilic PES membrane filters provide exceptional flow rates, long on-stream life, broad chemical compatibility and have no added surfactants to contribute to extractables.

Applications:

  • Bottled Water
  • Ophthalmic Solutions
  • Culture Media
  • Reagent Chemicals
  • LVPs
  • Biopharmaceuticals
  • Buffers
  • Juices
