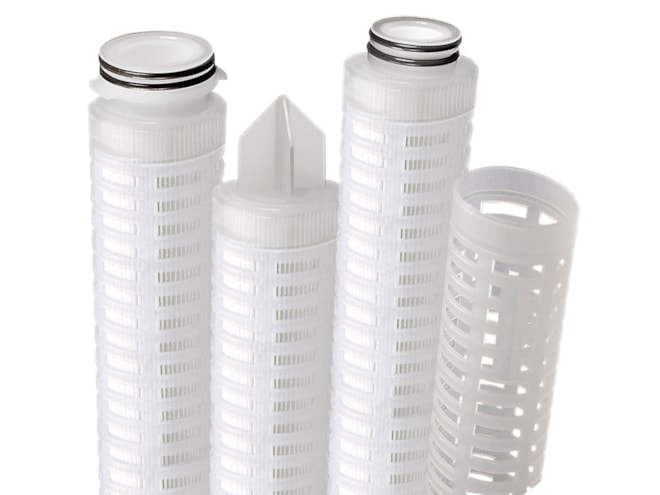

Graver Technologies WaterTEC Membrane Filter Cartridge

Absolute rated, hydrophilic, asymmetric polyethersulfone membrane, retention from 0.05 to 0.65 micron.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at (314) 912-9756. We’re open Mo-Fri 8:30am to 5:00pm EST.
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...

Features

  • 0.05 to 0.65 micron retention rating
  • Maximum differential pressure:
    • 75 psid at 70°F (5.2 bar at 21°C)
    • 30 psid at 176°F (2.0 bar at 80°C)
  • Maximum reverse differential pressure:
    • 40 psid at 70°F (2.8 bar at 21°C)
  • Maximum sustained operating temperature:
    • 176°F (80°C) at 20 psid (1.38 bar)
  • Certifications:
    • USP Class VI: Meets USP Class VI Biological Test for Plastics
    • FDA Listed Materials: All materials comply with FDA Title 21 of the Code of Federal Regulations Sections 174.5, 177.1520, and 177.2440
    • European Directive for Food Contact: European Regulation No. 1935/2004 and European Regulation 10/2011

The Graver Technologies WaterTEC Membrane Filter Cartridge is constructed of absolute rated, hydrophilic, asymmetric polyethersulfone membrane and polypropylene components. The WaterTEC series is designed for overall filtration economy and provides excellent flow rates and throughputs. The low pressure drop reduces energy costs and the high dirt holding capacity minimizes maintenance and down time.

Applications:

  • General water filtration
  • DI water prefilter
  • DI water post filter
  • Aqueous based chemical processing
