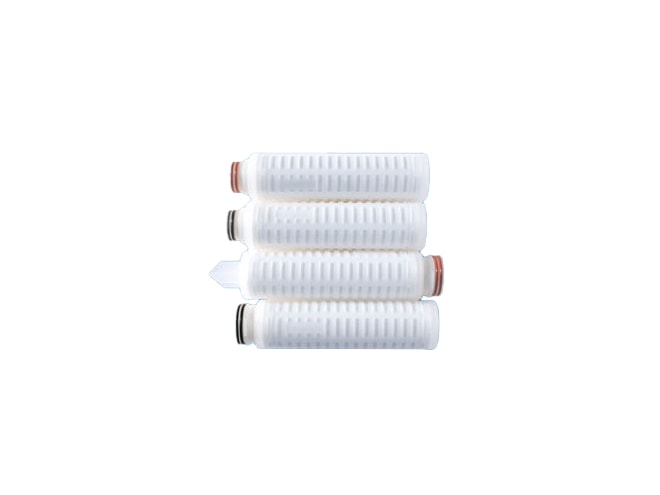

Graver Technologies TefTEC Membrane Filter Cartridge

Absolute rated retention from 0.05 to 1.0 micron.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at (314) 912-9756. We’re open Mo-Fri 8:30am to 5:00pm EST.
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...

Features

  • 100% manufactured, flushed, and integrity tested in ISO Class 7 cleanroom
  • 5-40in lengths
  • 203°F maximum operating temperature
  • 80 psid @ 70°F maximum differential pressure
  • 40 psid @ 160°F maximum differential pressure
  • 40 psid @ 70°F maximum reverse differential pressure
  • High surface area, single-layer construction
  • Available prewet for use with aqueous based chemicals

The Graver Technologies TefTEC Membrane Filter Cartridge is constructed with naturally hydrophobic PTFE membrane and polypropylene support layers and components. The HIMA retentive PTFE membrane offers higher hydrophobicity and water intrusion resistance compared to PVDF and polypropylene membranes. TefTEC filters are suited for gas/vent applications and the filtration of aggressive chemicals and solvents.
