Overview

Features

  • Size 1000
  • Holds up to 10lbs of dirt per element
  • Achieves particle removal below 1 micron
  • Can maintain moisture to levels below 50ppm
  • High dirt holding capacity

Description

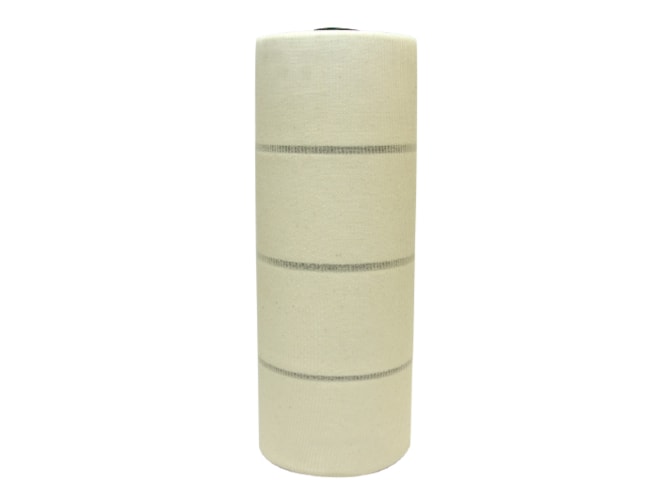

The Des-Case TC Series Axial Depth Filter Element designed for high-efficiency filtration of light-viscosity oils such as hydraulic, turbine, or transformer oils. These depth filter elements offer several key benefits, including helping to clean the oil by dislodging contaminants and achieving particle removal below 1 micron.

The filters use a wound cellulose media, with a positive, deep-penetrating seal to prevent oil from bypassing the media. The endcaps are made of 33% glass-filled Nylon 6/6, and the gaskets and O-rings are standard Buna-N, with Viton being an optional material. These filters are capable of holding up to 10 lbs of dirt per element and can adsorb up to 1 gallon of water per element.
