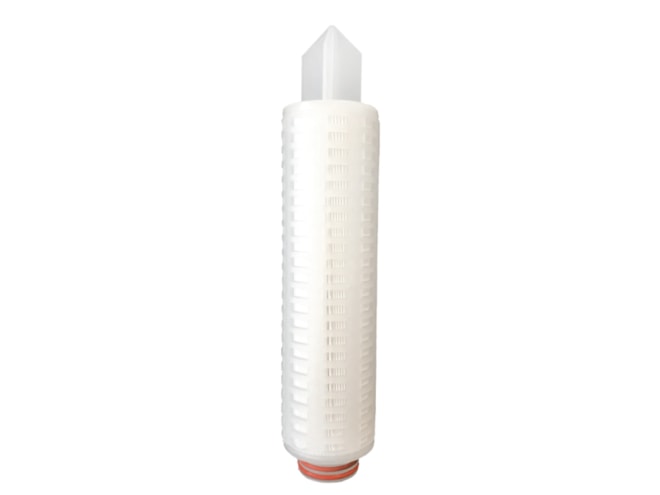

Strainrite Bev-MAXX Membrane Filter

100% thermally bonded construction.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at (314) 912-9756. We’re open 7:00 am to 5:00 pm CT.
Request pricing below.
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...

Features

  • 0.2, 0.45, and 0.65 microns
  • 180°F maximum operating temperature
  • 75 psid (5.1 bar) @ 75°F maximum differential pressure (forward)
  • 40 psid (2.8 bar) @ 180°F maximum differential pressure (forward)
  • 50 psid (3.4 bar) @ 75°F (reverse)
  • 7sq ft per 10in equivalent approximate surface area

The Strainrite Bev-MAXX Membrane Filter is specifically engineered to provide an absolute barrier to beverage spoiling micro-organisms. The Bev-MAXX incorporates a highly asymmetric polyethersulfone membrane within the exclusive pleat support configuration. Filter performance will remain effective after multiple steam sterilization cycles.
