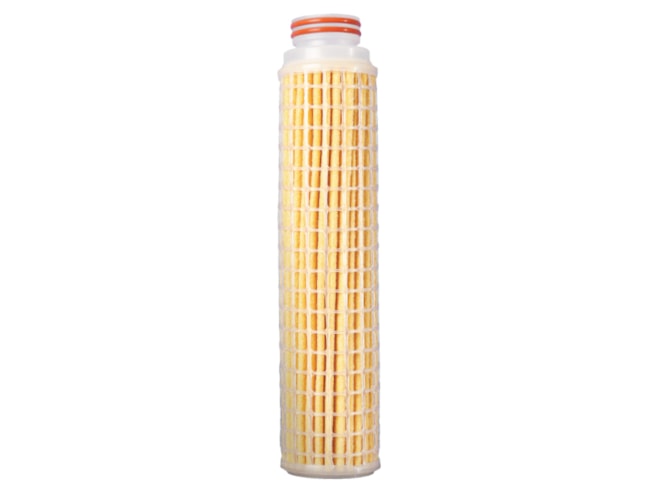

Strainrite CRB-Pleat Depth Cartridge

Suitable for both aqueous and non-aqueous liquids.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at (314) 912-9756. We’re open Mo-Fri 7am to 5:00pm CT.
Request pricing below.
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...

Features

  • 1, 5, 10, 25, 50, 75, 100, and 200 microns
  • 250°F maximum operating temperature
  • 75 psid (5.1 bar) @ 75°F maximum differential pressure
  • 40 psid (2.8 bar) @ 180°F maximum differential pressure
  • 3sq ft per 10" approximate surface area

The Strainrite CRB-Pleat Depth Cartridge is manufactured using long staple polyester fibers, in a specific blend of fiber diameters. It offers a broad range of micron rated cartridges, while virtually eliminating fiber migration.

This unique rigid fiber depth filter cartridge is engineered to take advantage of targeted depth media in an optimized pleated configuration, to maximize solids loading, gel removal capacity, and filter life. CRB cartridges contain more than 3.5 square feet of surface area per 10” segment. Increased surface area reduces flow velocity, which increases filter life exponentially due to a reduction in particle penetration, promoting increased dirt holding capacity and filter life.

These pleated cartridges are perfect for both aqueous and non-aqueous liquids.  CRB fibers are already fully impregnated,  diminishing  problematic swelling caused by fluid absorption.
