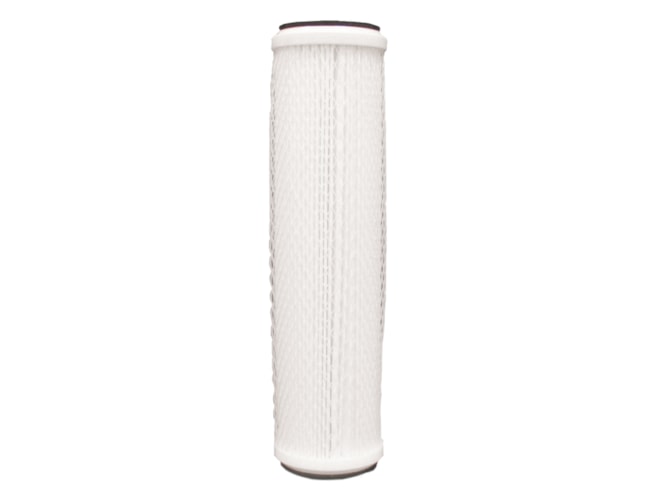

Strainrite GPVS Depth Cartridge

5-40in lengths .

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at (314) 912-9756. We’re open Mo-Fri 7am to 5:00pm CT.
Request pricing below.
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...

Features

  • 0.2, 0.45, 1, 3, 5, and 20 microns
  • 275°F maximum operating temperature
  • 75 psid (5.1 bar) @ 75°F maximum differential pressure
  • 40 psid (2.8 bar) @ 180°F maximum differential pressure
  • Thermally bonded

The Strainrite GPVS Depth Cartridge utilizes a high surface area of small denier fibers to create more void volume in a highly uniform matrix, optimizing flow rate and service life without sacrificing particle efficiency. The high efficiency media is non-calendared at the lower micron ratings resulting in significantly reduced resistance to flow or pressure drop when compared to similarly rated polypropylene microfiber technologies. These products are perfect for a wide range of applications where chemical compatibility is critical.
