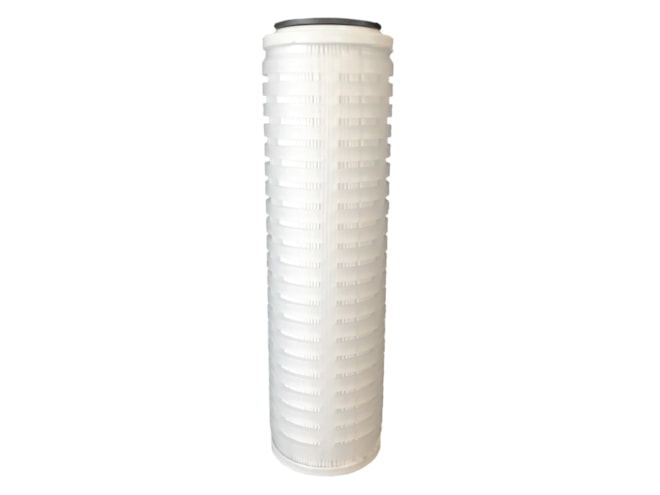

Strainrite Fiber-MAXX G / Glass-Pleat G Depth Cartridge

General and FDA Grade with 5-40in lengths.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at (314) 912-9756. We’re open Mo-Fri 7am to 5:00pm CT.
Request pricing below.
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...

Features

  • 0.2, 0.45, 0.65, 1, 5, and 10 microns
  • 75 psid (5.1 bar) @ 75°F maximum differential pressure
  • 40 psid (2.8 bar) @ 180°F maximum differential pressure
  • 180°F maximum operating temperature (polypropylene)
  • 275°F maximum operating temperature (polyester)
  • Thermally bonded
  • Special pleat option

The Strainrite Fiber-MAXX G / Glass-Pleat G Depth Cartridge utilizes a high surface area and high void volume media, incorporating microglass fibers in a uniform matrix that optimizes element flow rate and service life. This microfiber matrix optimizes pore size geometry required to offer beta rated filtration performance.

These FDA grade cartridges meet or exceed the requirements of the 21 CFR 177 for food and beverage contact. Strainrite also offers elements that utilize an epoxy binder providing an increased range of applications where chemical compatibility is critical.

The Fiber-MAXX G now offers a Special Pleat option which provides expected surface area improvements of as much as 45% in General and Pharmaceutical grades. This optimized pleat geometry option was developed for the filtration of process fluids that require a high degree of particle retention and/or constant bacterial barrier for effective sterilization.

Also available in Pharmaceutical Grade, please call for availability.
