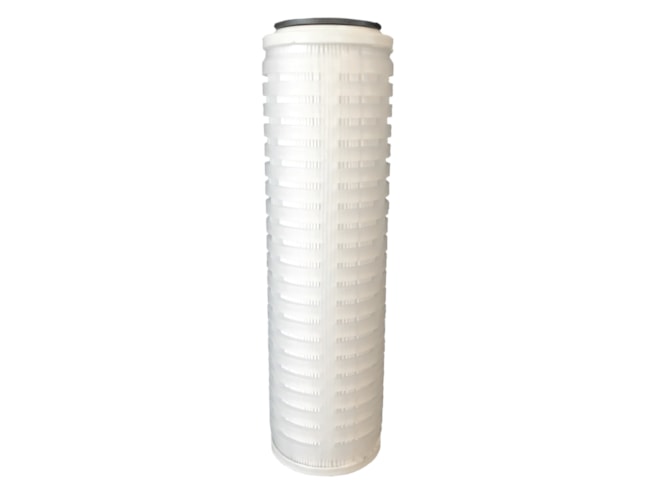

Strainrite Fiber-MAXX / Glass-Pleat Depth Cartridge

Meets or exceeds the requirements of the CFR 21 for Food and Beverage contact.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at (314) 912-9756. We’re open 7:00 am to 5:00 pm CT.
Request pricing below.
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...

Features

  • 1-90 micron ratings
  • 5, 10, 20, 30, and 40in lengths
  • 180°F maximum operating temperature (polypropylene)
  • 275°F maximum operating temperature (polyester)
  • 75 psid (5.1 bar) @ 75°F maximum differential pressure
  • 40 psid (2.8 bar) @ 180°F maximum differential pressure

The Strainrite Fiber-MAXX / Glass-Pleat Depth Cartridge utilizes a high surface area and high void volume media, incorporating microglass fibers in a uniform matrix that optimizes element flow rate and service life.

These cartridges can filter beverages such as beer and wine without removing flavor enhancing proteins. The materials of construction meet or exceed the requirements of the  CFR 21 for Food and Beverage contact. Strainrite offers elements that utilize an epoxy binder providing these microglass depth cartridges with an increased range of applications where chemical compatibility is critical.

The Fiber-MAXX now offers a Special Pleat option which provides expected surface area improvements of as much as 45% in General and Pharmaceutical grades. This optimized pleat geometry option was developed for the filtration of process fluids that require a high degree of particle retention and/or constant bacterial barrier for effective sterilization.
