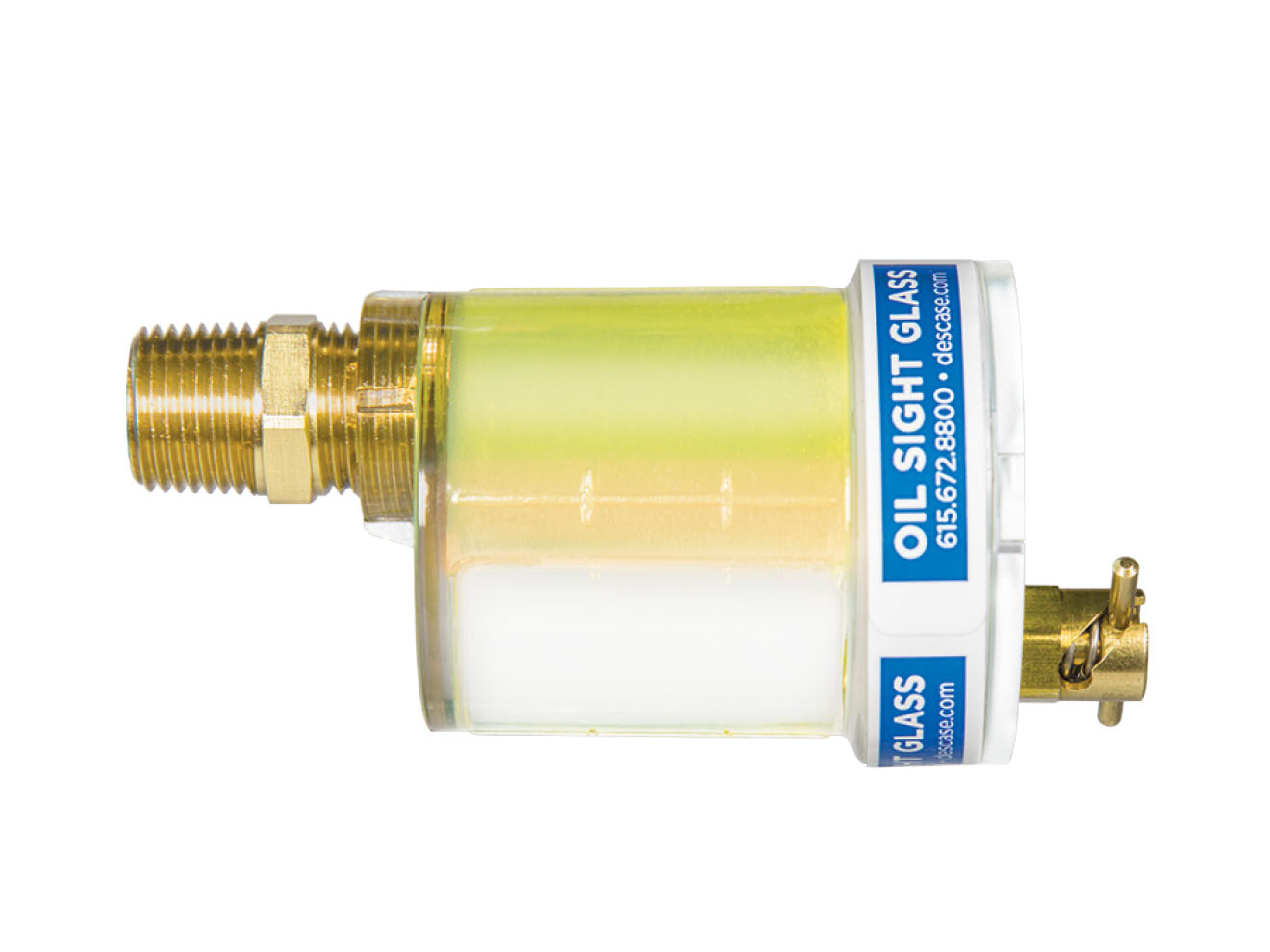

Des-Case Oil Sight Glass

Oil tank sight glass with 360° view, with spring-loaded drain valve for water purging. Dual mount configurations in 1 & 3oz sizes, with up to 32oz capacities available.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at (314) 912-9756. We’re open Mo-Fri 7am to 5:00pm CT.
Request pricing below.
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...

Features

  • 360˚ view of oil
  • UV resistant
  • Operating pressure: 65psi max
  • Operating temperature range: -40˚F to 200˚F (-40˚C to 93˚C)
  • Connection types: 1/4, 1/2, 3/8in NPT threads
  • Capacities: 1, 3, 16 and 32oz
  • Material:
    • Bottle/glass: transparent polyamide
      • 16/32oz capacities made with acrylic
    • Drain valve/hex nipple: brass
  • Dual mount design: vertical or horizontal
    • 16 and 32oz sizes available in vertical mount style only

The Des-Case Oil Sight Glass is constructed of high-performance transparent polyamide, or acrylic in high-volume capacities (16, 32oz). This clear, durable design enables immediate visual oil level monitoring with a 360˚ field of view, with a white-bottom to the bottle to enhance visibility of any sediment. This model installs directly to a reservoir's drain port, in vertical or horizontal configurations (16 and 32oz are vertical only).

Indication marks on the side of the bottle increases accuracy of visual monitoring of water accumulation, and the spring-loaded drain valve permits easy purging of said water. According to the latest API 610 standard (12th edition, January 2021) the use of a BS&W-bottom sediment and waste bowl-such as the Oil Sight Glass are now recommended for wet sump oil lubricated pumps to detect the presence of water and other gross contamination.

Applications:

  • Pumps
  • Gearboxes
  • Storage tanks
  • Fluid-lubricated machinery
