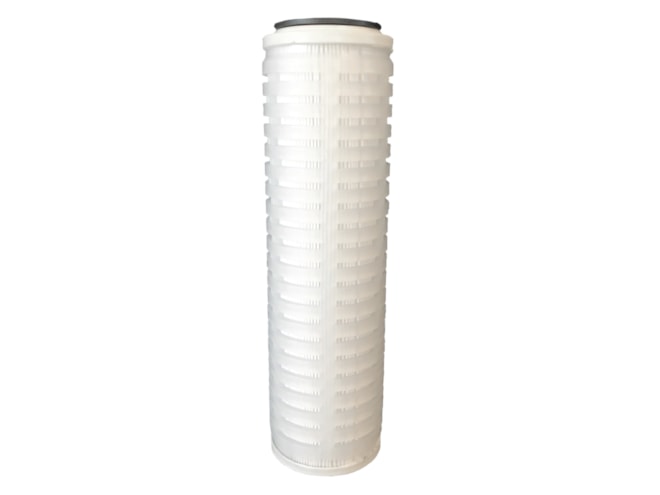

Strainrite Poly-MAXX G / Pur-Pleat G Depth Cartridge

FDA Title 21 compliant for food and beverage contact.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at (314) 912-9756. We’re open Mo-Fri 7am to 5:00pm CT.
Request pricing below.
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...

Features

  • 0.25-50 micron rating options
  • 5, 10, 20, 30, and 40in lengths
  • 180°F maximum operating temperature
  • 75 psid (5.1 bar) @ 75°F maximum differential pressure (forward)
  • 40 psid (2.8 bar) @ 180°F maximum differential pressure (forward)
  • 100% polypropylene construction

The Strainrite Poly-MAXX G / Pur-Pleat G Depth Cartridge is designed and manufactured on state-of-the-art meltblowing equipment to Strainrite’s strict specifications for high solids-loading requirements for a variety of prefiltration applications.

These filters are constructed using the latest high-speed thermal bonding equipment in a clean environment to ensure superior product cleanliness and thermal and chemical compatibility. All of these depth cartridges are manufactured using 100% virgin polypropylene materials that comply with FDA Title 21 of The Code of Federal Regulations for food and beverage contact.

The Poly-MAXX G now offers a Special Pleat option in micron ratings of 0.25, 0.5, 1. This option provides expected surface area improvements of as much as 25%. This optimized pleat geometry option was developed for the filtration of process fluids that require a high degree of particle retention and/or constant bacterial barrier for effective sterilization.
