Des-Case 3-D BullsEye Oil Sight Glass

Polyamide bullseye-type sight glass/viewport replacement with 360° view for use with pumps, gearboxes, and storage tanks. Available in NPT, BSPP and metric thread sizes.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at (314) 912-9756. We’re open 7:00 am to 5:00 pm CT.
Request pricing below.
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...

Features

  • 360˚ view of oil level & condition
  • Easy to install and maintain
  • UV resistant
  • Operating pressure: 65psi max at 200°F
  • Operating temperature range: -40˚F to 200˚F (-40˚C to 93˚C)
  • Connection types: NPT, BSPP and metric threads
  • Material: transparent polyamide
    • Brass fittings standard on 1/4, 3/8in NPT, M10X1.0, M10X1.5 & M12X1.5

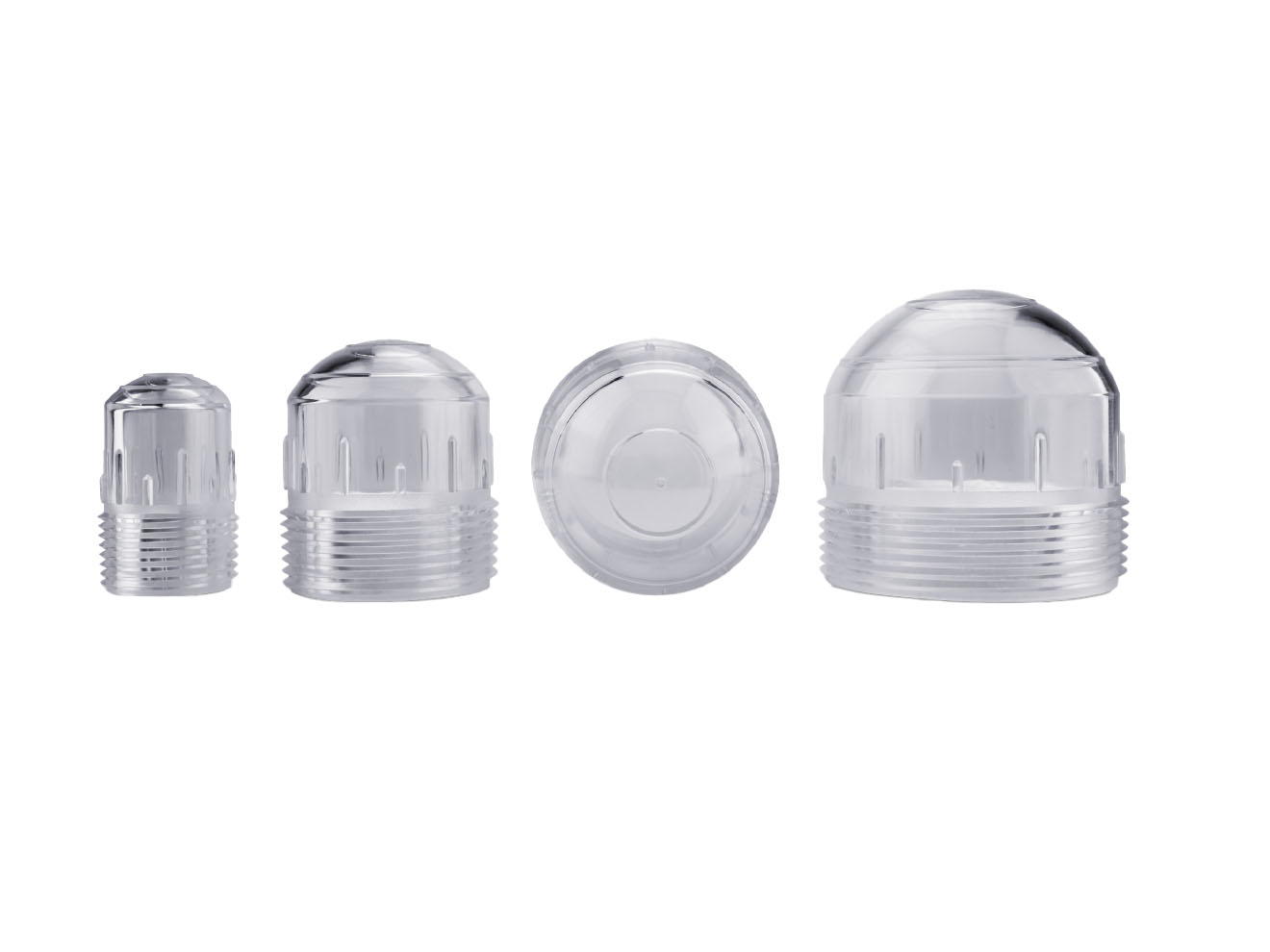

The Des-Case 3-D BullsEye Oil Sight Glass is constructed of high-performance transparent polyamide, which enables immediate visual oil level monitoring with a 360˚ field of view. Concentric circles in the glass design aid in improved level marking accuracy. Thread types come in NPT, BSPP and metric options. This design is durable with strong impact, chemical and UV resistance, ensuring a long service lifespan.
