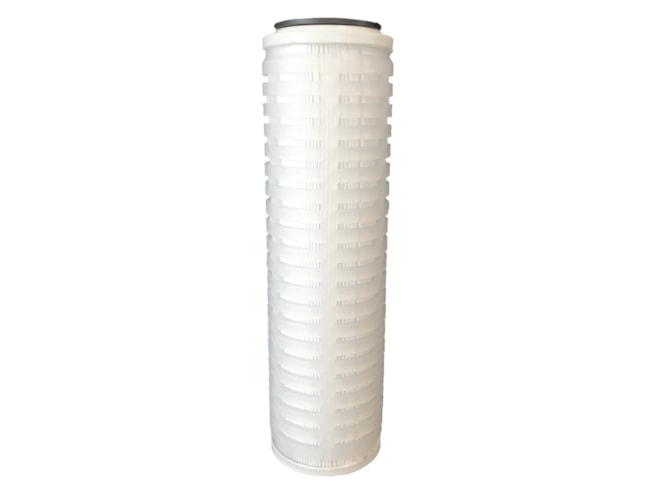

Strainrite Duo-MAXX / Duo-Pleat Dual-Pleated Cartridge

Available in 10-40in lengths.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at (314) 912-9756. We’re open 7:00 am to 5:00 pm CT.
Request pricing below.
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...

Features

  • 0.04, 0.1, 0.2, 0.45, 0.65, and 0.8 micron ratings
  • 75 psid (5.1 bar) @ 75°F maximum differential pressure (forward)
  • 40 psid (2.8 bar) @ 180°F maximum differential pressure (forward)
  • 50 psid (3.4 bar) @ 75°F maximum differential pressure (reverse)
  • 180°F maximum operating temperature
  • General, FDA, and Pharmaceutical grade option

The Strainrite Duo-MAXX / Duo-Pleat Dual-Pleated Cartridge incorporates a synchronized media design. This design utilizes a prefiltration layer up-stream over a final membrane layer in the same cartridge. These filters are a pre-filter and a final filter in one.
These filters are available in multiple micron ranges and combinations to meet the requirements of your process They are available in two prefiltration materials: polypropylene microfiber and borosilicate microglass. The final filtration layer is available in Nylon, polysulfone, cellulose acetate, and Strainrites’ asymmetric polyethersulfone membrane.

Available in 5" length, please inquire.
