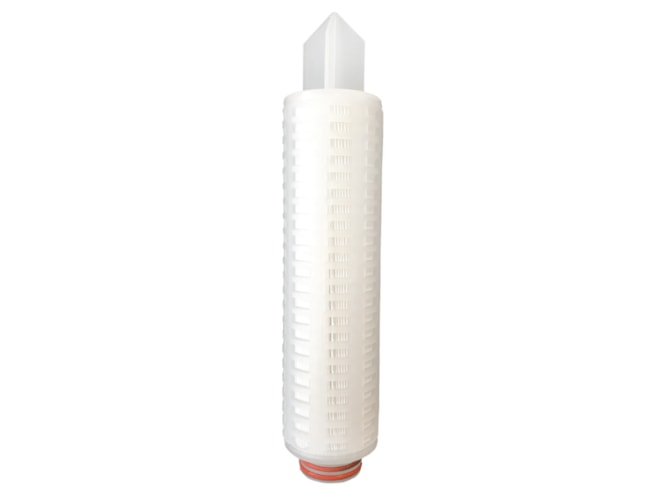

Strainrite Pur-MAXX CN / Mem-Pleat CN Membrane Cartridge
Offers highly retentive, naturally hydrophilic, Nylon membranes .
Overview
Features
- 0.1, 0.2, 0.45, and 0.65 micron rating options
- 180°F maximum operating temperature (polypropylene)
- 275°F maximum operating temperature (polyester)
- 75 psid (5.1 bar) @ 75°F maximum differential pressure (forward)
- 40 psid (2.8 bar) @ 180°F maximum differential pressure (forward)
- 50 psid (3.4 bar) @ 75°F maximum differential pressure (reverse)
- Cartridge can be sterilized via steam or Autoclave
Description
The Strainrite Pur-MAXX CN / Mem-Pleat CN Membrane Cartridge is manufactured with highly retentive, naturally hydrophilic, Nylon membranes that have an added cationic, positively charged, functional group. The positive surface charge or positive zeta potential, provides enhanced retention of smaller negatively charged particles such as endotoxins by electrokinetic mechanisms.
These cartridges provide absolute particle retention by size exclusion while having the added benefit of removing significantly smaller, negatively charged particles. The charged Nylon 6,6 membrane provides reliable wet-out characteristics and flow performance per surface area in an all polypropylene construction, as compared to other membrane cartridges. These cartridges are perfectly suited for critical applications where superior flow and particle removal efficiency between 0.04 and 1.2 micron is required.
The Pur-MAXX CN now offers a Special Pleat option, which provides expected surface area improvements of as much as 25%. This optimized pleat geometry option was developed for the filtration of process fluids that require a high degree of particle retention and/or constant bacterial barrier for effective sterilization.
