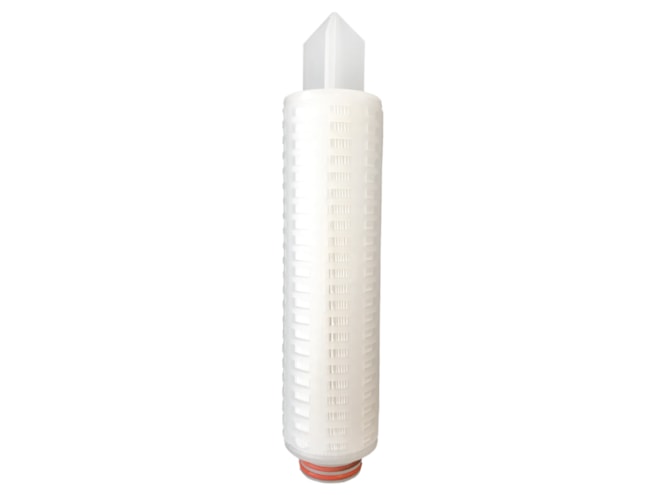

Strainrite Pur-MAXX N / Mem-Pleat N Membrane Cartridge

For critical applications where particle removal efficiency between 0.1 and 1.2 micron is required.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at (314) 912-9756. We’re open Mo-Fri 7am to 5:00pm CT.
Request pricing below.
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...

Features

  • 5-10in lengths available
  • 0.1, 0.2, 0.45, 0.65, 0.8, and 1.2 microns
  • 180°F maximum operating temperature (polypropylene)
  • 275°F maximum operating temperature (polyester)
  • 75 psid (5.1 bar) @ 75°F maximum differential pressure (forward)
  • 40 psid (2.8 bar) @ 180°F maximum differential pressure (forward)
  • 50 psid (3.4 bar) @ 75°F maximum differential pressure (reverse)
  • Cartridge materials meet CFR 21 for food and beverage contact

The Strainrite Pur-MAXX N / Mem-Pleat N Membrane Cartridge is a highly retentive, naturally hydrophilic nylon membrane filter that is specially designed for critical filtration requirements of aqueous fluids.

The Nylon 6,6 membrane, in an all-polypropylene construction*, provides excellent wet-out characteristics and superior flow performance per surface area as compared to other membrane cartridges. No additives, resins, surfactants, or binders are used in the manufacturing process, which dramatically reduces rinse up time, extractables and downtime.

The Pur-MAXXN now offers a Special Pleat option, which provides expected surface area improvements of as much as 25%. This optimized pleat geometry option was developed for the filtration of process fluids that require a high degree of particle retention and/or constant bacterial barrier for effective sterilization.
