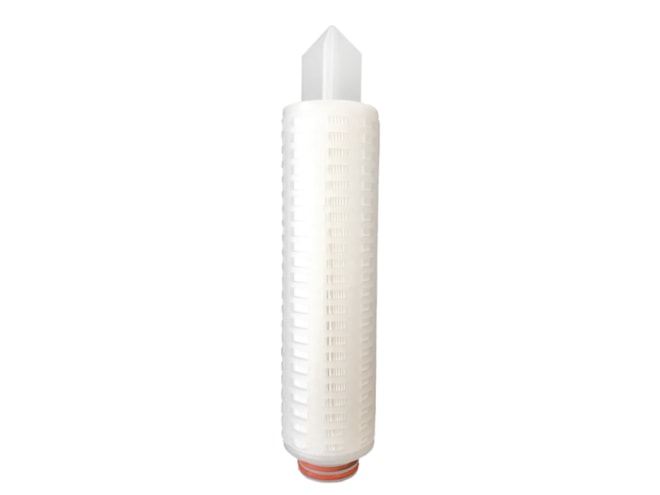

Strainrite Pur-MAXX E / Mem-Pleat E Membrane Cartridge

For the filtration of process fluids that require a high degree of particle retention.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at (314) 912-9756. We’re open Mo-Fri 7am to 5:00pm CT.
Request pricing below.
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...

Features

  • 5-40in length options
  • 0.04-1.2 absolute rated retention
  • 180°F maximum operating temperature (Continuous Duty Polypropylene)
  • 275°F maximum operating temperature (Continuous Duty Polyester)
  • 75 psid (5.1 bar) @ 75°F maximum differential pressure (forward)
  • 40 psid (2.8 bar) @ 180°F maximum differential pressure (forward)
  • 50 psid (3.4 bar) @ 75°F maximum differential pressure (reverse)

The Strainrite Pur-MAXX E / Mem-Pleat E Membrane Cartridge was developed for the filtration of process fluids that require a high degree of particle retention and/or constant bacterial barrier for effective sterilization.

Hydrophilic asymmetric polyethersulfone membrane ensures excellent flow rates, broad chemical compatibility, low protein binding, low intractability, high mechanical strength, and temperature resistance in a variety of applications for the biopharmaceutical, microelectronics, chemical, food and beverage industries.

These cartridges meet USP Biological Reactivity Test, in vivo for class VI-121°C plastics. Sterilizable using industry recognized and accepted methods.
