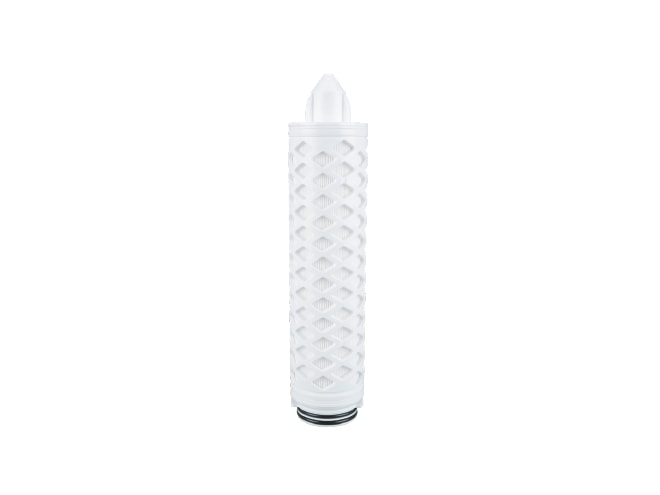

Donaldson Filtration LifeTec PES-BN-A Filter Element
Absolute grade rating of 0.45 µm.
- 1C230803-84A
- 1C230803-84A
- By Donaldson Filtration Solutions
Overview
Features
- 25 ml/min @ 1.0 bar (14.50 psi)
- 180°F maximum operating temperature
- EPDM o-ring
- Approved for food contact use acc. to CFR Title 21 & EC/1935/2004
Description
The Donaldson Filtration LifeTec PES-BN-A Filter Element is designed for final filtration and microbial stabilization of highly colloidal liquids. It features an absolute grade rating of 0.45 μm and utilizes a state-of-the-art Polyethersulfone membrane that is inherently hydrophilic. The membrane's asymmetric pore structure, with decreasing pore size towards the center, results in a highly porous and efficient filtration medium.
The filter is particularly suited for applications in the beverage industry, including breweries, soft drinks, bottled water, and wineries, as well as in the chemical industry.
Manufactured in a Class 7 clean room facility, each 10" filter module undergoes integrity testing to ensure consistent and reliable performance. The filter elements are flushed with deionized water during production and are traceable via serial number in accordance with EC/1935/2004.
