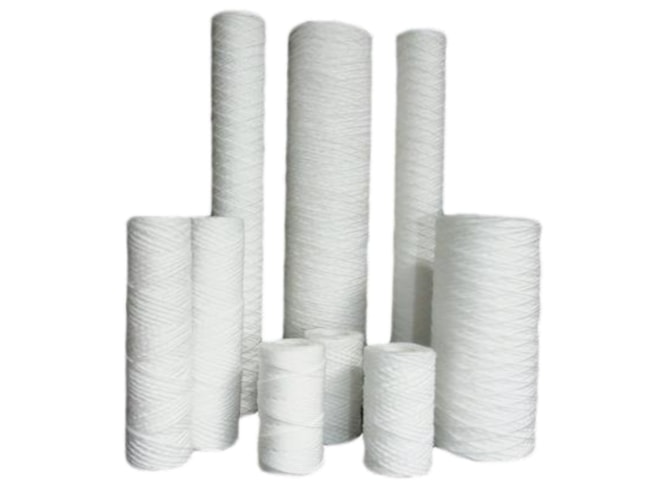

Coleman Filter FDA Bleached Cotton String Wound Depth Filter
300°F maximum media temperature.
Overview
Features
- 4 to 6 GPM flow rate per 2.5in x 10in length (depending on fluid)
- 90% nominal efficiency
- 30 PSID recommended max. change-out differential pressure
- 60 PSID max. differential pressure
Description
The Coleman Filter Bleached Cotton String Wound Depth Filter is ideal for the filtration of distilled water, beverages, vegetable oils, petroleum, fatty acids and alcohols.
String wound depth filters are created by winding diamonds onto a core with 1 to 4 inches of filtration media. Bleached cotton media filters provide a high dirt holding/retention capability with low media migration. These filters are spun wound to micron ratings from 0.5 to 200 with a temperature rating up to 300°F. Core center material options include polypropylene, tin, 304SS, or 316SS.
Applications
- Vegetable oils
- Fatty acid beverages
- Citric acids
- Hydrocarbons
- Alcohols
- Demineralized water
- Photographic solutions
- Organic solvents
- Animal and petroleum oils
